Getting ready for Halloween

Over a year ago I saw a post over on robotroom that talked about a LED light kit for a pumpkin. Having just acquired a Adruino Uno from Sparkfun I thought that this would be the perfect thing for Halloween however time constraints and a busy work schedule kept me from finishing the project.

After I thought about it though - who wants to throw their nice and shiny Ardruino into a pumpkin for an entire night of shenanigans? Turns out you can use your Ardruino to program a attiny85 chip to do the same thing and run it all with a 9V battery!


1 9V battery
1 9V battery connector
1 7805 Rectifier
1 .1 uF Capacitor (probably not necessary)
1 ATTiny85
2 Yellow LEDs
1 Red LED
3 330 Ω resistor
1 breadboard

And the code

// LED Fire Effect

int ledPin1 = 0;
int ledPin2 = 1;
int ledPin3 = 4;

void setup() {
  pinMode(ledPin1, OUTPUT);
  pinMode(ledPin2, OUTPUT);
  pinMode(ledPin3, OUTPUT);

void loop() {
  analogWrite(ledPin1, random(64)*4);
  analogWrite(ledPin2, random(64)*4);
  analogWrite(ledPin3, random(64)*4);

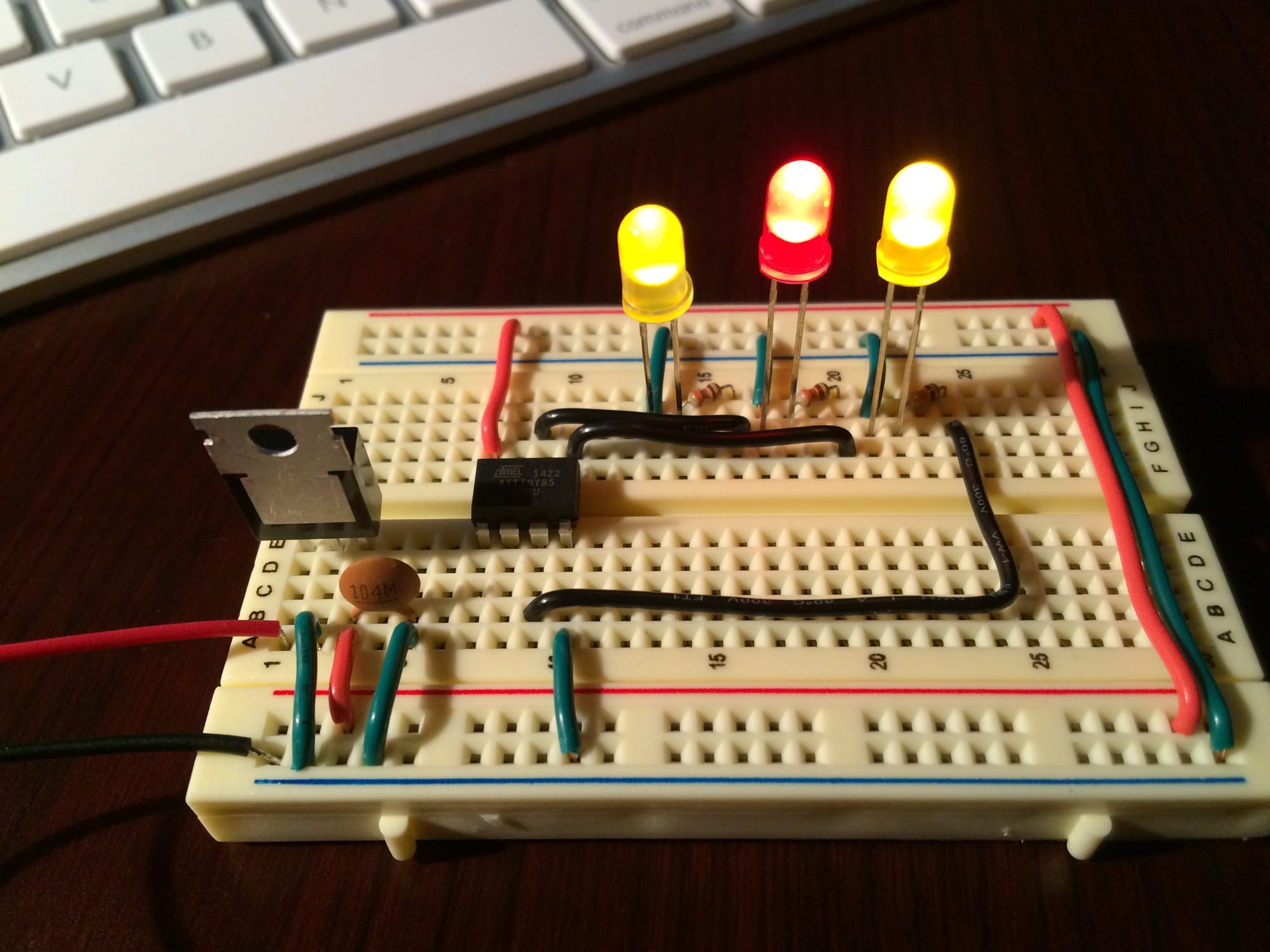

Looks pretty good in action - can't wait to test it out.

Edit 10/22/2014: Adding a cirtcuit board that I am going to try and fabricate.
